Problem
Starting in the top left corner of a $2 \times 2$ grid, and only being able to move to the right and down, there are exactly $6$ routes to the bottom right corner.
How many such routes are there through a $20 \times 20$ grid?
Tracing the paths
Let's represent the paths as a set of nodes. Since this is a $2 \times 2$ grid we need $3 \times 3$ nodes to pass through. We'll mark the first node, top left, with $1.$
We'll trace the paths in iterations. Each node can either split into two paths, or go along an edge.
If a node has all previous paths connected, we'll add the values of those paths together and set the node value to that.

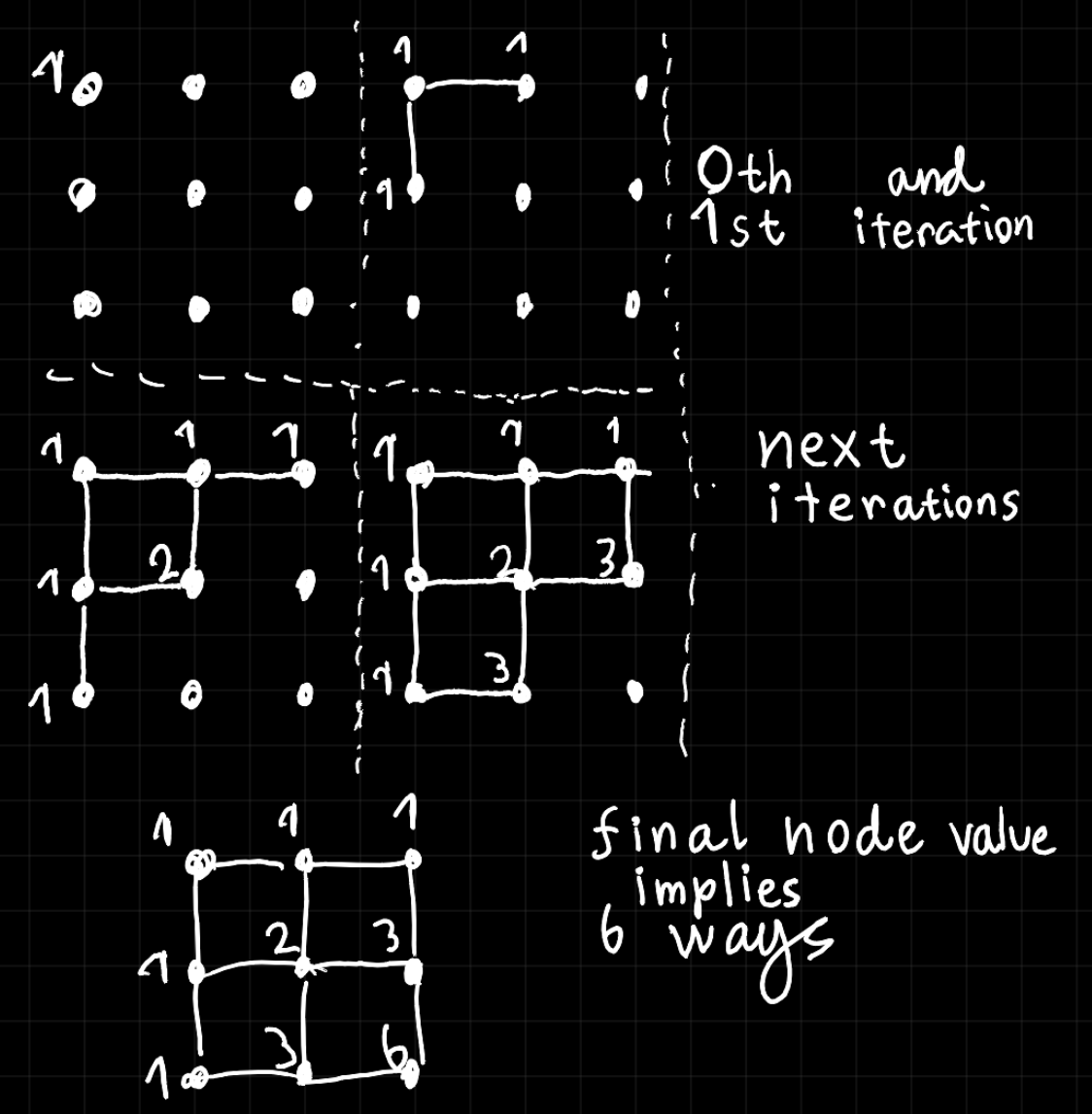

See the following image for the iterative steps for a $2 \times 2$ grid.
Enter Pascal
Those numbers are peculiar. I noted that the first few iterations produced an increasing amount of elements. $1$, $1\ \ 1$, $1\ \ 2\ \ 1.$ I searched the OEIS. The first result, A001221, didn't seem relevant but Pascal's triangle, A007318, had some relevant numbers; the double threes were there and a six was not too far behind. I supposed that we'd see these missing numbers if we made larger grids.
To make Pascal's triangle, we start with $1$ as the top node. For each new line, copy all elements from above, diagonally to the left and right. If an element is already present in the new line, don't overwrite, but add to its value instead.
If you do this, you should get something like this.
A: 1
B: 1 1
C: 1 2 1
D: 1 3 3 1
E: 1 4 6 4 1I've enumerated the lines of the triangle from A-E so that we can talk about them going forward.

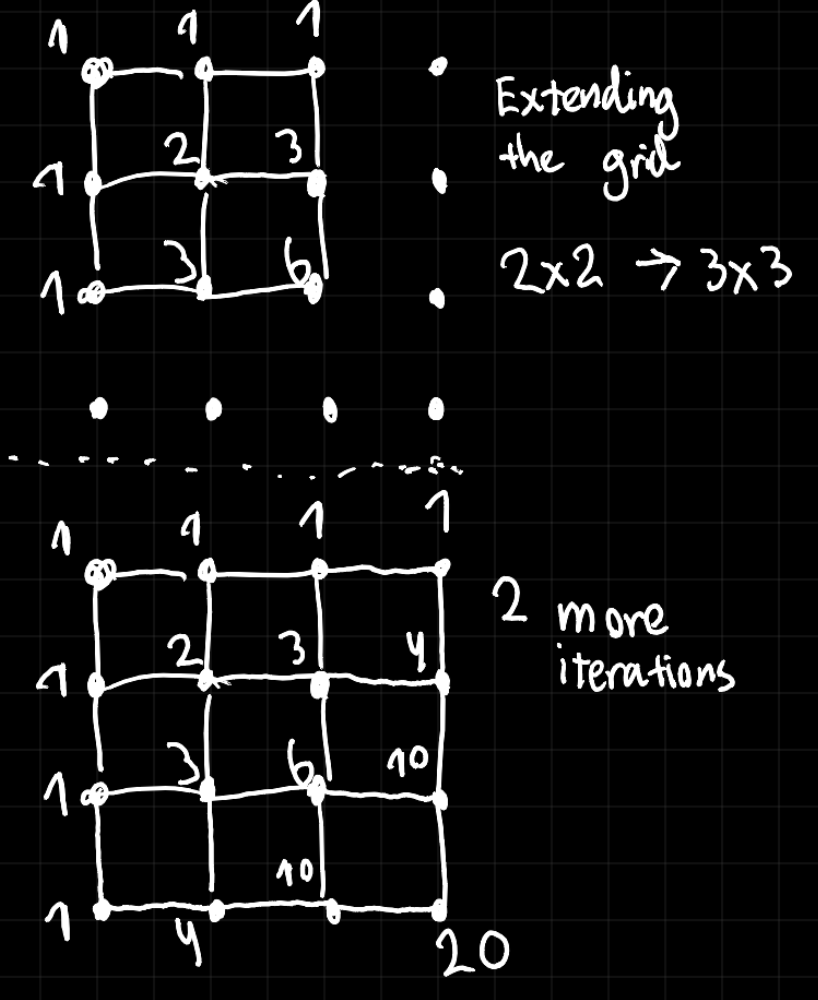

The $1 \times 1$ grid is contained within the $2 \times 2$ grid. We see that this grid has $2$ ways to be traversed. In the same way, we can extend the $2 \times 2$ grid by adding dots below, to the right and extending diagonally on the last one.
Cool. A $3 \times 3$ grid has $20$ ways to be traversed. If you think back on Pascal's triangle, the numbers we are deriving for grid traversal are appearing every other line.
I think we can argue that you can do one thing and one thing only for a $0 \times 0$ grid, namely nothing.
$$0 \times 0 = \ middle\ element\ of\ A$$ $$1 \times 1 = \ middle\ element\ of\ C$$ $$2 \times 2 = \ middle\ element\ of\ E$$
Our prediction now is that the middle element of line $G$ is $20.$ We extend according to the rules downward from E.
E: 1 4 6 4 1
F: 1 5 10 10 5 1
G: 1 6 15 20 15 6 1Yes, the middle element of line $G$ is indeed $20.$
Solution
Generating Pascal's triangle in Uiua
This should be relatively straightforward. When presented with a list of elements, in some line of Pascal's triangle, we want to copy them down, to the left and to the right, but add to them if an element is already there.
Let's use [1 2 1] as an example.
We know that the new line will have four elements.
This means that:
- -the left copy will be
[1 2 1 0] - -the right copy will be
[0 1 2 1]
Adding them together results in [1 3 3 1], so our reasoning is likely correct.
Let's write a function for getting the next line, GNL, and see if it produces
the correct results.
Since copying down, in both directions, is the same as pre- and appending a $0$,
we might fork a join 0 and a backward join 0 to the input.
fork(join0|bwjoin0) [1 2 1]
⊃(⊂0|˜⊂0) [1 2 1]
[1 2 1 0]
[0 1 2 1]That's what we want to add together alright. Since $0$ is the same argument to both fork functions we can factor it out like so.
fork join bwjoin 0 [1 2 1]
⊃⊂ ˜⊂ 0 [1 2 1]
[1 2 1 0]
[0 1 2 1]Now we just need to add them together and we have our GNL function.
GNL ← + ⊃⊂ ˜⊂ 0
GNL [1 2 1]
[1 3 3 1]Does it produce the same results for A-G as we've calculated by hand? Let's run it for 0-7 iterations and see what it produces.
&sprints to stdout
repeatneedsbwbecause the range is to be supplied as the repeat amount whereas1is the initial input toGNL
≡(&s ˜⍥GNL 1) ⇡₁6
[1 1]
[1 2 1]
[1 3 3 1]
[1 4 6 4 1]
[1 5 10 10 5 1]
[1 6 15 20 15 6 1]The 40th line
Looking at the triangle, we see the following pattern.
$$0 \times 0 = \ middle\ element\ of\ line\ 0$$ $$1 \times 1 = \ middle\ element\ of\ line\ 2$$ $$2 \times 2 = \ middle\ element\ of\ line\ 4$$ $$3 \times 3 = \ middle\ element\ of\ line\ 6$$
We can get the middle element of an array by picking the element that's halfway
across its length. It might be something like pick floor div,2 by len SOME_ARRAY.
PickMiddle = pick floor div,2 by len
PickMiddle ← ⊡ ⌊ ÷₂ ⊸⧻
GetGridWays = PickMiddle bw repeat GNL 1 mul,2
GetGridWays ← PickMiddle˜⍥GNL 1 ×₂Let's test a couple of the known values.
GetGridWays 1
2
GetGridWays 2
6
GetGridWays 3
20That seems right. Let's go for it.
GetGridWays 20
137846528820How fast?
Very fast. Roughly 100 microseconds.
⊙◌⍜now(GetGridWays 20)
0.00009560585021972656A shorter solution?
Look at Pascal's triangle on Wikipedia.
Here's a very interesting passage from that article.
In the $n$th row of Pascal's triangle, the $k$th entry is denoted $\binom{n}{k}$, pronounced "n choose k" because it describes the number of combinations: the number of ways of choosing $k$ things from among a collection of $n$ things.
Our answer therefore is "40 choose 20" or $\binom{40}{20}.$ Since this represents combinations, your spidey senses might tingle for a certain function.
Tuples has to do with permutations and combinations. Try scanning it and see if you find something useful.
These stand out.
<and>will give all unique combinations of rows from the array.
and
If the second argument is a scalar, the number of tuples that would be returned for the
⇡ rangeof that number is returned.
For tuples, given < or >, the first argument is how many elements we want
per arrangement and the second will be how many we can choose from.
Therefore the solution is simply:
# tuples < choose_this_many from_this_many
tuples < 20 40
⧅< 20 40
137846528820Faster?
This one runs in ~5 microseconds or about 20 times faster. Both solutions are well within the minute limit so this is just pedantry at this point. Of course, whenever you can use pure built-ins you should do so.
